SKU: GRE000102

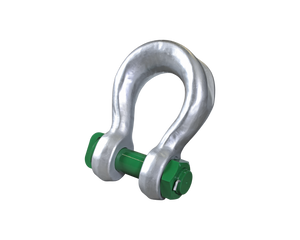

Green Pin Sling Shackles Bow Type with Safety Nut and Bolt Pin

From: $678.00
  • Model: P-6033.
  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Minimum breaking load is 5 times the W.L.L.
  • Shackle body silver painted.
  • Pin green painted.
  • Temperature range -20 ° C upto +200 ° C.
  • Certification types available for this product: 2.1, 2.2, 3.1, MTCb, LROS, MPIb, USb, CE.
  • All shackles from 75t and above are supplied with a Lloyd’s Register of Shipping Certificate on proof load.
  • 5% forging tolerance on inside width and length.
Final Configuration Price:
From: $678.00
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

The crown of a Green Pin Sling Shackle (P-6033) is wider than that of a standard shackle, thus creating a bigger bearing surface.

This improves the lifetime of the sling. The maximum load of the configuration is limited by the component with the lowest WLL.

  • Model: P-6033.
  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Minimum breaking load is 5 times the W.L.L.
  • Shackle body silver painted.
  • Pin green painted.
  • Temperature range -20 ° C upto +200 ° C.
  • Certification types available for this product: 2.1, 2.2, 3.1, MTCb, LROS, MPIb, USb, CE.
  • All shackles from 75t and above are supplied with a Lloyd’s Register of Shipping Certificate on proof load.
  • 5% forging tolerance on inside width and length.

Product Code W.L.L. A B C D E F G H I J K L Weight Technical
  t mm mm mm mm mm mm mm mm mm mm mm mm kg / ea Specification
GPSL7 7 22 22 46 19 32 96 64 153 115 110 19 41 2 Download
GPSL12.5 12.5 28 28 61 25 44 121 82 197 151 146 24 54 4 Download
GPSL18 18 35 35 69 30 54 148 102 239 175 180 29 64 7 Download
GPSL30 30 40 42 90 35 69 165 126 279 211 200 34 79 13 Download
GPSL40 40 55 51 109 45 84 199 140 331 252 235 38 97 22 Download
GPSL55 55 60 57 115 55 90 240 160 389 299 270 45 100 50 Download
GPSL75 75 70 70 140 70 110 290 185 473 317 345 54 120 67 Download
GPSL125 125 85 80 155 85 137 366 220 583 413 410 64 150 105 Download
GPSL150 150 94 95 180 89 147 391 253 645 445 455 50 170 160 Download
GPSL200 200 110 105 200 100 158 481 280 759 480 508 50 205 220 Download
GPSL250 250 126 120 228 110 179 542 300 859 535 600 60 240 320 Download
GPSL300 300 135 134 245 122 195 601 350 947 590 620 70 265 350 Download
GPSL400 400 160 160 295 145 231 576 370 985 675 715 80 320 635 Download
GPSL500 500 170 180 330 160 263 681 450 1131 748 810 90 340 803 Download
GPSL600 600 190 200 350 170 289 741 490 1234 809 913 100 370 980 Download
GPSL700 700 200 215 392 190 315 751 540 1284 879 993 100 400 1260 Download
GPSL800 800 218 230 420 200 342 851 554 1426 942 986 110 420 1430 Download
GPSL900 900 242 255 466 220 368 851 580 1488 1023 1050 120 440 1650 Download
GPSL1000 1000 260 270 490 240 399 851 614 1532 1103 1176 120 460 2970 Download
GPSL1250 1250 285 300 510 260 452 931 650 1666 1227 1275 150 530 3700 Download
GPSL1550 1550 285 320 550 280 483 950 680 1710 1300 1253 150 560 4000 Download
